Firgelli Robots 170 Tie-points Breadboard with 1 Terminal Strip

170 Tie-points Breadboard with 1 Terminal Strip

$2.75

1 Terminal Strip Tie-point 170

Overview:

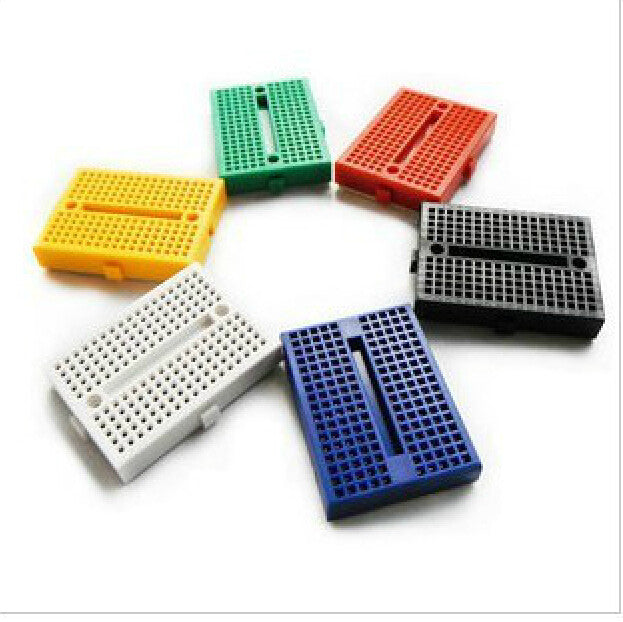

We have 6 different colors for you to choose from. These mini bread boards are commonly used in electronic projects by hobbyists. They can be connected to each other as needed by the clip on the side.

Description:

Accepts transistors, diodes, LEDS, resistors, capacitors and virtually all types of components

1 Terminal Strip Tie-point 170

1 Pcs/set

None-transparent

Housing Material: ABS

Contact Material: Nickel plated brass

Connect Type: Socket

Min.Line Spacing: Pitch=2.54mm/0.1″

Surface Finishing: Spring clip

1. 110V or 220V AC input range selectable by switch

2. Dielectric withstanding voltage: AC 500V for 1 minute

3. DC adjustment range: ±10% rated output voltage

4. Overload protection: 125%~165% shut off, AC recycle to re-start

5. Over voltage proection: 112%~135% rated output

6. Fixed switching frequency at 25KHz

7. Contact resistance: 100mΩ max

8. Insulator resistance: 1000MΩmin. @DC 500V

9. Operating temperature: -20°c~+80°c

10. Plug times: ≥10000 times

11. 100% full load bum-in test

Protection: Short circuit / Overload / Over voltage

Twin adhesive back, can be fixed and moved to any position easily

Phosphor bronze nickel plated spring clips

Accepts a variety of wire sizes(AWG:18-32)

Cooling by free air convection

All material Rohs compliance

Low cost, high reliability

Completely reusable

RoHs compliance
