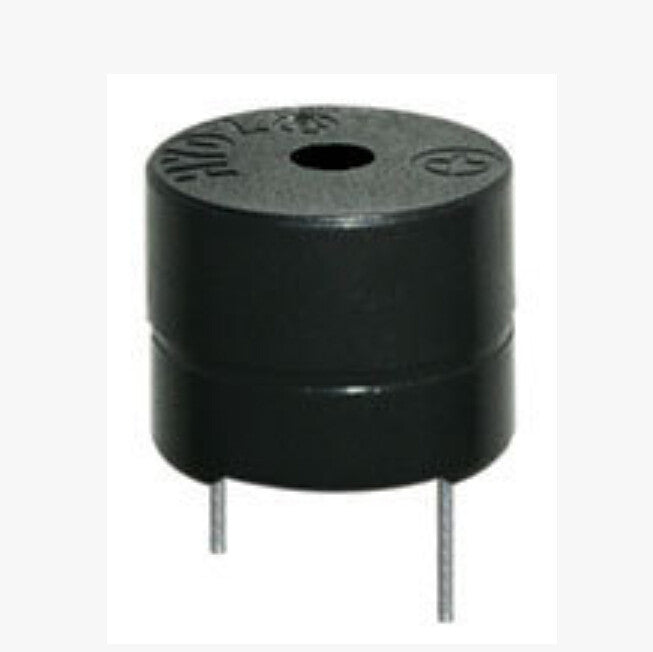

Through-hole Active Electro Magnetic Buzzer - Dia.: 12mm /H: 9.5mm
Description:
Compared to a passive buzzer, an Active Electro-Magnetic Buzzer is easy to use, just plug-and-play. The advantage is its low power consumption and the good quality materials used in production.
Technical Parameter:
| Model: AEM-120903 | Model: AEM-120905 | Model: AEM-120909 | |
| Rated Voltage(VDC) | 3 | 5 | 9 |
| Working Voltage(VDC) | 2~5 | 3~7 | 7~11 |
| Rated Current(mA) | 30 | ||
| Min.Sound Output at 10 cm(dB) | 85 | ||
| Resonant Frequency(Hz) | 2700 +/- 300 | ||
| Working Temperature(℃) | -30～+70 | ||
| Housing Material | PBT + Glass Fibre | ||
