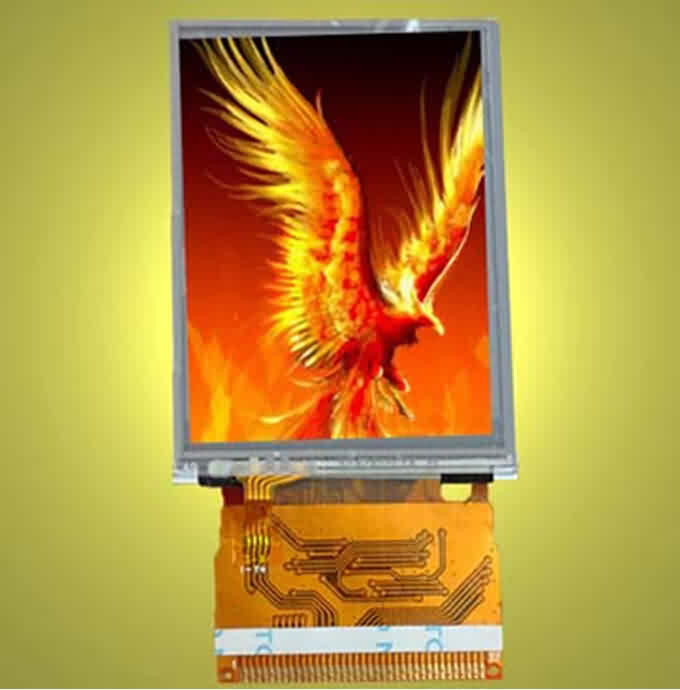

2.4 inch Color TFT LCD Display with Parallel / Serial Interface
Description:
Driven by ILI9341 ic and supported by LED back light, this LCD display with parallel or serial interface operates in a very reliable manner. Great resolution at very low power consumption.
Features:
* Module outline size: 59.46(W)x42.72(H)x2.6(D) / 42.72(W)x60.26(H)x3.5Max(TP)
* Active area size: 36.72(W)x48.96(H)
* Number of Dots: 240×(RGB)×320
* Input voltage: 2.8V-12V Optional (2.8V for drive ic / 12V for backlight )
* Viewing direction: Optional-6:00/12:00 O'clock
* Operation Temperature: -20℃to +70℃
* Storage Temperature: -30℃to +80℃
* Display mode: TFT
* Multiplexing: 1/320DUTY, 1/19BIAS
* FPC: plug-in type
* Connection mode: COG+FPC
* Interface: 37PIN
* Driver IC: ILI9341
* Driver IC package: COG
* LED backlight: white bright LED backlight
