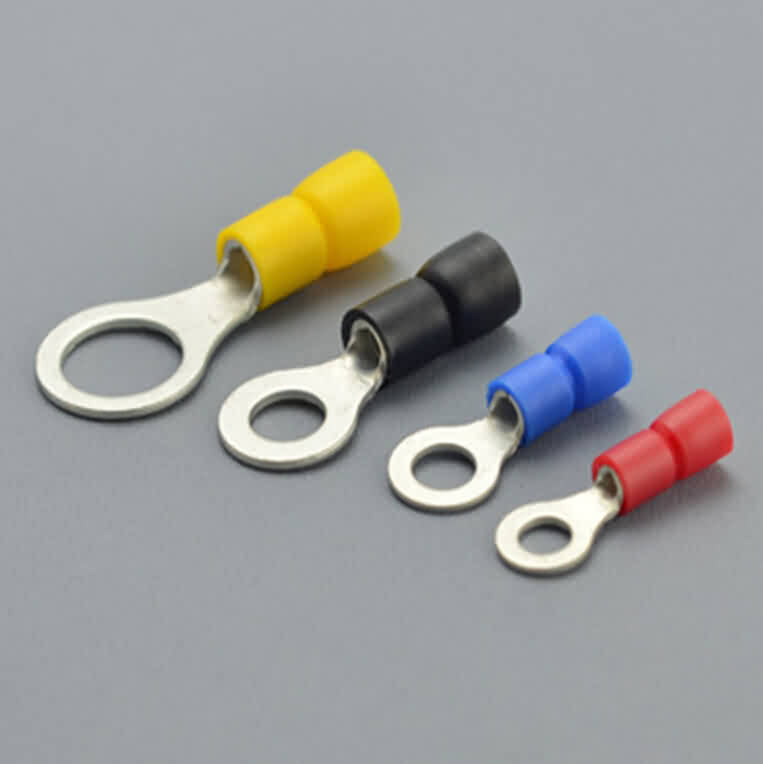

Firgelli Robots Circular Pre-insulated Terminal Lug / Max current: 48A

Circular Pre-insulated Terminal Lug / Max current: 48A

$5.05

Circular Pre-insulated Terminal Lug / Max current: 48A

50 pieces per bag

Description:

This type of pre-insulated terminal lug is used to snap on a bolt for power supply connection and supports the wire range of AWG 12 to 10. The connecting material is made of tin-plated brass with maximum current resistance of 48 amp.

Features:

* Contact material: tin-plated brass
* Metal thickness: 1.0mm
* Maximum current resistance: 48A
* Insulating material: PVC
* Insulating material color: yellow
* Working temperature: -40 to +105°C
* Wire range: awg12~10(4-6mm²)



Model: Number of ANSI bolt Diameter of bolt d2 B(mm) L(mm) F(mm) H(mm) D(mm) Color
RV5.5-3.5 #6 3.7mm 7.2 21.4 5.9 13 6.7 Yellow
RV5.5-4A #8 4.3mm 7.2 21.4 5.9
RV5.5-4B #8 4.3mm 9.5 25.5 8.3
RV5.5-5 #10 5.3mm 9.5 25.5 8.3
RV5.5-6 1/4 6.4mm 12 31.5 13
RV5.5-8 5/16 8.4mm 15 33.7 13.7
RV5.5-10 3/8 10.5mm 15 33.7 13.7
RV5.5-12 1/2 13mm 19.2 38.1 16
