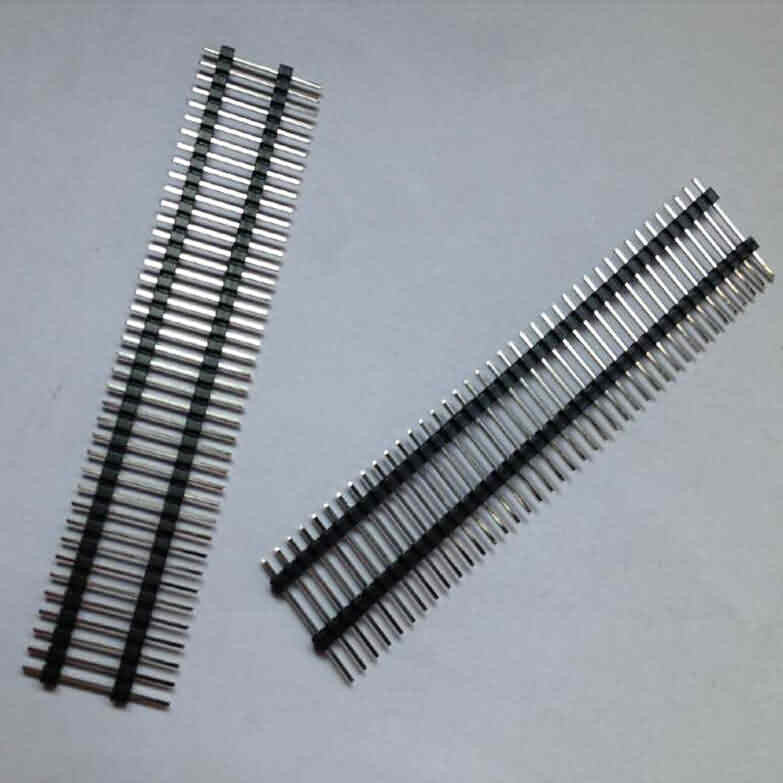

Breakaway Unshrouded Stacking Header / Single Row / Pitch: 2.54mm

Breakaway Unshrouded Stacking Header / Single Row / Pitch: 2.54mm

$1.20

Breakaway Header / Unshrouded / Single Row / Pitch: 2.54mm

Description:
This unshrouded stacking male header is made with 40 straight pins. It is breakable according to actual needs. It is commonly used as a low cost connector.

Its 2.54mm spacing makes it easy to use on our breadboards and prototyping PCBs.

*** These pin headers are gold-plated with very great conductivity. Hobbyists love to use them

Features:
* Current rating: 3A
* Contact resistance: 20 ohm
* Withstand voltage: 500V
* Housing material: Black thermoplastic(UL 94V-0)
* Posts: Phosphor bronze(gold-plated)
* Insertion force: 12lb(53.4N)max.
* Retention force: 25lb(1.11N)min.

A(stack height)=0.4"(10.16mm) / B(tail length)=0.087"(2.2mm) / C(post length)=0.817"(20.75mm)

0.2 lb
