Firgelli Robots 16 Channel Servo Radio Control Board

16 Channel Servo Radio Control Board

$90.32

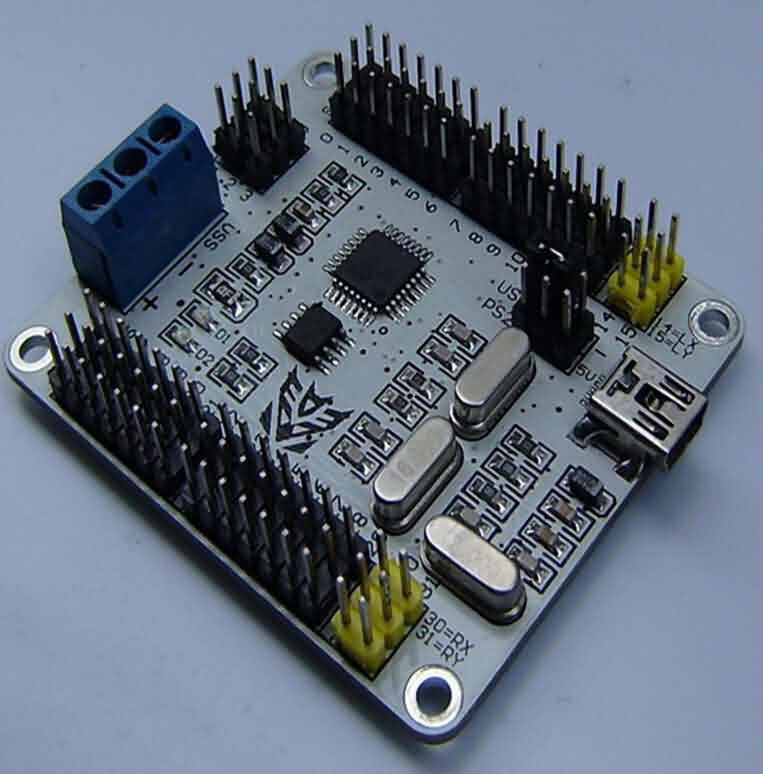

16-Channel Servo Controller Board

Description:

This is a very refined and stable servo motion controller board with USB interface. Up to 16 servo motors can be controlled by one board at the same time, either by programming via PC, or UART communication ( TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. Command instructions can also be downloaded to the MCU on board for offline operation.

It can send commands to play 256 different motions.

Features:

* Controlling chip power supply range: 6.5V~12V or 4.5 V~5.5 V.
* Servos power supply range: DC (voltage depends on the parameters of the servos, commonly 5V DC).
* Control channels: can control 16 channels at the same time,speed is precisely adjustable.
* Communications input: USB or serial port (TTL, UART). (can use wireless Bluetooth module or other wireless module to wireless control)
* Signal output: PWM (accuracy of 1us).
* Servo motor driver resolution: 1us, 0.09 degrees.
* Baud rate range: 9600 19200 38400 57600 115200 128000. (fully automatic identification, no need setting)
* Support of servo motors: Futaba, Hitec or others.
* PCB size: 55 mm x 40 mm x 1.6 mm (installation hole spacing: 34 * 49 mm).
* Control mode: USB and serial interface (TTL) accept command mode.
* Flash memory capacity: on-board 512 K ROM.

0.5 lb
