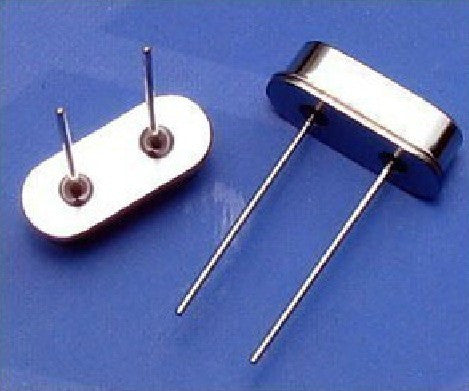

Firgelli Robots Thru-Hole Quartz Crystal / Package: Metal Can

Thru-Hole Quartz Crystal / Package: Metal Can

$0.20

Crystal Through-hole Package

Description:

Standard frequency crystals - use these crystals to provide a clock input to microprocessor. 2.5mm Max height - Resistance weld seal - Pb-free and RoHS/Green compliant

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS CONDITIONS. CHARACTERISTICS UNITS
Frequency Range fO 3.2 to 36.000 MHz, AT Fundamental MHz
30.0 to 125.000 MHz, AT 3rd Overtone
26.8 to 54.000 MHz, BT Fundamental
Frequency Tolerance Ref @ +25oC ±30ppm PPM
Temperature Tolerance TL ±30ppm (–20 to +70°C) AT Cut PPM
±50 or ±100ppm (–40 to +85°C) AT Cut
0 to -100ppm (–20 to +70°C) BT Cut
Operating Temperature TOPR –20 to +70°C or -40 to +85°C oC
Storage Temperature TSTG –55 to +125°C oC
Shunt Capacitance CO 7pF max pF
Load Capacitance CL 8 to 32pF or Series Resonance pF
Drive Level DL 100μW typ. (500μW Max) μW
Aging (First Year) @ +25oC ±3ppm Max PPM/Y
0.2 lb
