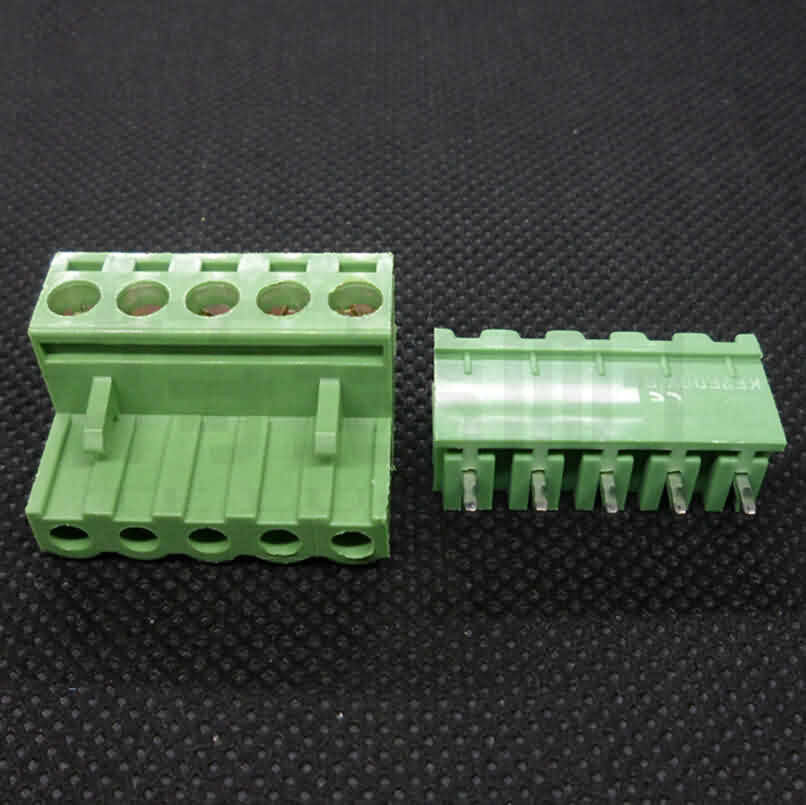

Firgelli Robots 2EDG Screw Terminal Block Connectors in Pair - Pitch: 5.08mm - Straight Pin

2EDG Screw Terminal Block Connectors in Pair - Pitch: 5.08mm - Straight Pin

$0.45

2EDG Screw Terminal Block Connectors in Pair - Pitch: 5.08mm - Straight Pin

Price is for one male - female pair.

Description:

These terminal blocks with a pitch of 5.08mm are commonly used on PC boards when creating breakouts for high power supply. They come in pair for perfect matching. Stripper power cord can be screwed on the male terminal and the female socket can be soldered on boards.

Material:

* Screw: zinc-plated steel

* Metal contact: nickel-plated brass

* Wire cage: nickel-plated brass

* Housing: nylon PA66(UL94V-0)

Electrical:

* Rated voltage: 300V

* Rated current: 15A

* Withstanding voltage: AC2000V/min.

* Wire range: 28~16AWG

Mechanical:

* Temperature range: -40 ~ +50 degrees centigrade

* Max. soldering: +250 degrees centigrade for 5 seconds

* Torque: 0.2Nm

* Strip length: 5~6mm

Diagram:

Female socket diagram



Male connector with straight pin diagram

0.2 lb
