Firgelli Robots Full Functional Pocket Digital Oscilloscope

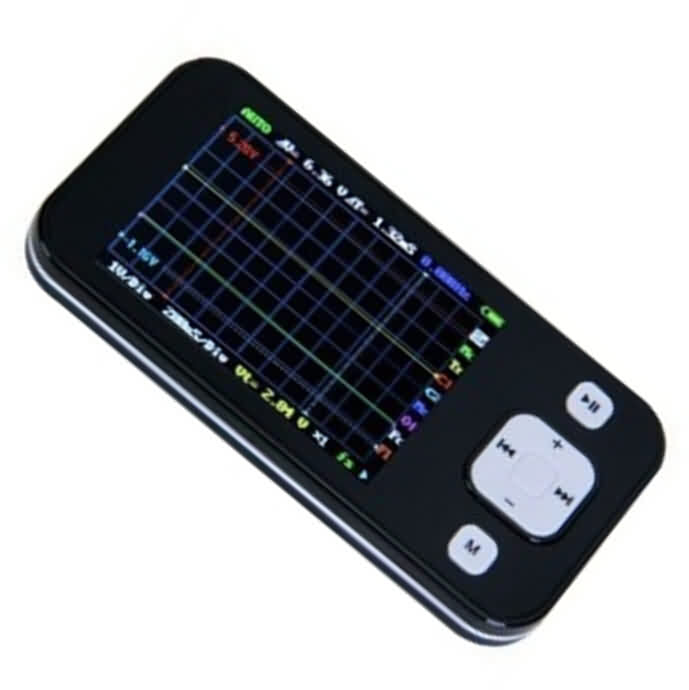

Fully Functional Pocket Digital Oscilloscope

$161.85

Fully Functional Pocket Digital Oscilloscope

Description:

This battery operated pocket size digital storage oscilloscope features the needs of all the basic electronic engineering. It is based on ARM Cortex TM-M3 compatible 32 bit platform, and equipped with 320*240 color LCD display, SD card capability, USB connection, and chargeable batteries.

Specifications:

* Display: 2.8 inch Color TFT LCD;
* Display resolution: 320 * 240
* Display color: 65K
* Analog bandwidth: 0 - 1MHz
* Max.sample rate: 1Msps 12Bits
* Sample buffer depth: 4096 points
* Base level range : from 10uS/Div to 10S/Div, a total of 19 files ( by way of progressive 1-2-5 )
* Horizontal position: adjustable with indicator
* Vertical sensitivity : from 20mV/Div to 100V/Div, a total of 12 files ( by way of progressive 1-2-5 )
* Input Impedance : > 500KΩ
* Maximum input voltage : 80Vpp (by 1 probe)
* Trig modes: Automatic , Normal , Single , Random , Scan
* Can automatically assess the measure of the input signal frequency, period , duty cycle , AC peak - peak , AC RMS , AC and DC voltage
* Functions: Precise vertical / horizontal measurements with markers; rising/falling edge trigger; trig level/sensitivity adjustable with indicators; hold/run feature
* Test signal: built-in 10 - 1M Hz(1-2-5 step)
* Waveform storage: SD Card
* PC connection: Mini USB B-type
* Upgrade: by bootloader via USB
* Power supply: 3.7V rechargeable Lithium battery/USB
* Dimensions: 105 * 53 * 8mm

User's Manual
