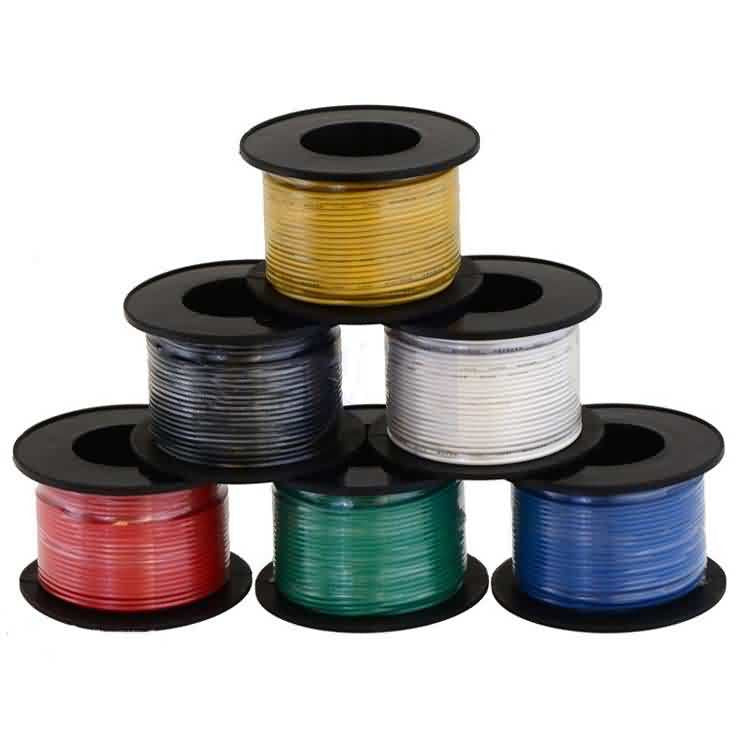

Firgelli Robots Stranded Wire by 6 Colors / AWG: 26 / Length: 21 meters(70ft)

Stranded Wire in 6 Colors / AWG: 26 / Length: 21 meters (70ft)

$4.70

Stranded Wire in 6 Colors / AWG: 26 / Length: 21 meters(70 feet)

Description:

Stranded wire is more flexible than solid wire and is good for projects where you need the wire to be able to bend. This is a spool with 21 meters of 26 AWG stranded copper hook-up wire in 6 different commonly used colors. It conforms to the UL1007 specification and is rated for up to 80°C and 300 VAC.

General Specs:

Wire gauge Strand Strand diameter Avg. Insulation thickness Outer diameter Length per spool
(AWG) count (mm / mil) (mm / mil) (mm / in) (m / ft)
30 7 0.101 / 3.97 0.38 / 15 1.1 / 0.043
28 7 0.127 / 5.00 0.38 / 15 1.2 / 0.047
26 7 0.160 / 6.30 0.38 / 15 1.3 / 0.051 21/70
24 11 0.160 / 6.30 0.38 / 15 1.4 / 0.055
22 17 0.160 / 6.30 0.38 / 15 1.6 / 0.063
20 26 0.160 / 6.30 0.38 / 15 1.8 / 0.071
2.2 lb
