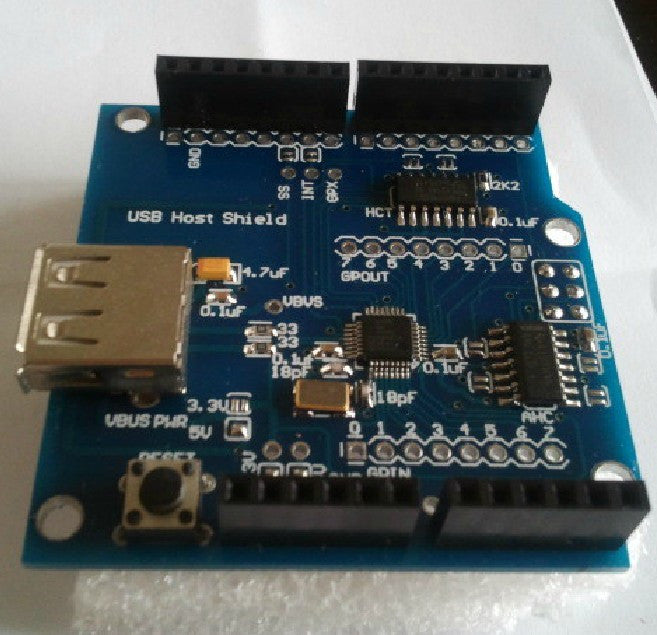

Firgelli Robots Arduino USB Host Shield V2.0

Arduino USB Host Shield V2.0

$47.50

Arduino USB Host Shield V2.0

Overview:

The USB Host Shield contains all of the digital logic and analog circuitry necessary to implement a full-speed USB peripheral/host controller with your Arduino. This shield adds USB Host capabilities to the popular Arduino platform. C Software support for new devices is constantly added; at the moment, code for USB keyboard and PS3 controller are ready with Bluetooth and digital cameras in the works. This means you could use your Arduino to interface with and control any USB slave device - thumbdrives, digital cameras, bluetooth dongles, and much more!

Features:

  • USB 2.0 Full Speed compatible
  • 3.3/5V operation level compatible
  • All GPIOx pins break-out
  • USB Host 5V/500mA supply for USB protocol

Hardware:

Pin

Description

D0

UART_Rx

D1

UART_Tx

D2

-

D3

-

D4

-

D5

-

D6

-

D7

-

D8

-

D9

-

D10

SPI-CSn

D11

SPI-MOSI

D12

SPI-MISO

D13

SPI-SCK

A0

AD0

A1

AD1

A2

AD2

A3

AD3

A4

IIC_SCL

A5

IIC_SDA

0.5 lb
